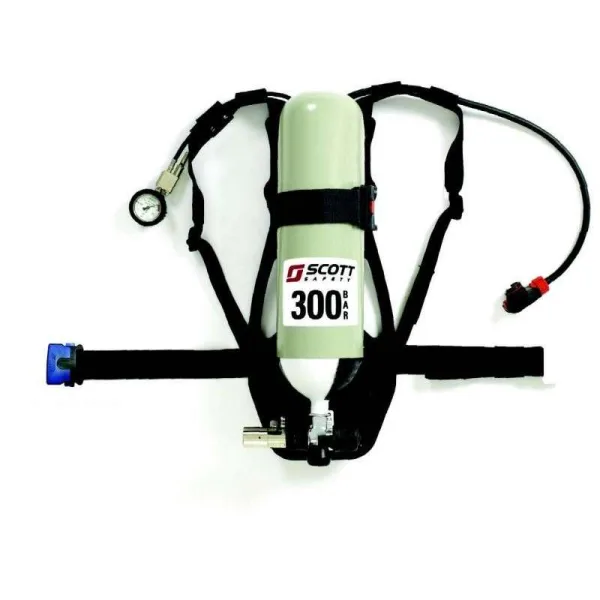

The system consists of a carrying harness, backplate and the pneumatic system contains a reducer with integrated cylinder connector, demand valve, pressure gauge and whistle.
This unit can be used with the following facemasks; Panaseal, Vision 3, Panavisor and Promask PP.
The Sigma 2 type 2 self-contained breathing apparatus (SCBA) has been designed for use in marine industrial firefighting environments but is also suitable for providing protection in any IDLH-type environment.
It is CE marked in compliance with EN 137:2006 type 2.
This unit is equipped with a Tempest demand valve, which is a compact, positive pressure demand valve, which features a servo-assisted tilting diaphragm mechanism and low inspiratory resistance and responsive dynamic performance.
It also features automatic first-breath actuation and hands-free bypass facility.
The demand valve is manufactured from injection moulded polyamide with rubber seals and diagrams.
The pressure indicator is a Bourdon tube type dial indicator, which includes a heat and impact resistant polycarbonate lens, safety blowout vent in the rear of the gauge.
SCBA dimensions are 600 mm x 278 mm x 200 mm and the unit weighs 2.3 kg without the cylinder.
Star can also supply breathing air cylinders and breathing air compressors, as well as a range of spare parts, including masks, cylinders, demand valves and service kits, as well as a full FFE inspection and maintenance service. Contact us about your specific requirements.
