Torch SR-B 17V and SR-B 26V for Rogue ES welding machine
TIG Torch SR-B 17V and SR-B 26V are air cooled and have manual gas valve. All wear parts (2,4) are included in the torch except the tungsten electrode. Torch hose length 4m (13 ft.)
| Product description | Product code |
|---|---|
|
SR-B 17V TIG torch OKC 50,4m AC current welding capacity 100 Amps (60%*) DC current welding capacity 140 Amps (60%*) Tungsten electrode diameter 1,6- 2,4 |
00600011 |
|
SR-B 26V TIG torch OKC 50,4m AC current welding capacity 140 Amps (60%) DC current welding capacity 200 Amps (60%) Tungsten electrode 1,6- 2,4- 3,2 |
00600012 |
*Duty cycle
Wear Parts for TIG Torch SR-B 17V and SR-B 26V
Tungsten electrodes (Wolfram electrodes)
| Product type | Type | Colour | Code | Current | Product code |
|---|---|---|---|---|---|
| 1.6 | Lanthanum 1,5% | Gold | WL 15 | AC/DC | 00600168 |
| 2.4 | Lanthanum 1,5% | Gold | WL 15 | AC/DC | 00600169 |
| 3.2 | Lanthanum 1,5% | Gold | WL 15 | AC/DC | 00600170 |
Internal torch wear parts

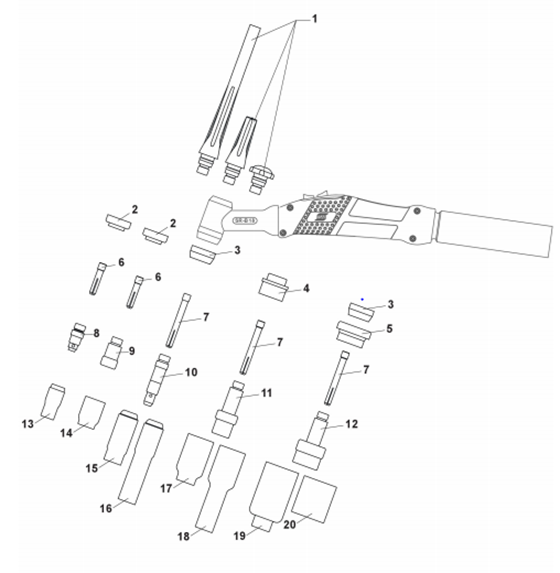

See schematic within the image gallery above for item references.
| Item | Description | Information | Product code |
|---|---|---|---|
| 1 | Back cup - long | Comes with torch | 00600171 |
| 1 | Back cup - short | 00600172 | |
| 3 | Heat shield | Comes with torch | 00600173 |
| 7 | Collet Ø 1.6 | 00600174 | |
| 7 | Collet Ø 12.4 | Comes with torch | 00600175 |
| 7 | Collet Ø 3.2 | 00600176 | |
| 10 | Collet body Ø 1.6 | 00600177 | |
| 10 | Collet body Ø 2.4 | Comes with torch | 00600178 |
| 10 | Collet body Ø 3.2 | 00600179 | |
| 15 | Gas nozzle no.6 | Comes with torch | 00600180 |
| 15 | Gas nozzle no.7 | 00600181 | |
| 15 | Gas nozzle no. 8 | 00600182 |
