Ultrasonic Cleaning Tanks
Explore our range of Hilsonic ultrasonic cleaning tanks, a safe and efficient solution for even the hardest-working marine equipment.
Explore our range of Hilsonic ultrasonic cleaning tanks, a safe and efficient solution for even the hardest-working marine equipment.
Hilsonic ultrasonic systems are suitable for various cleaning requirements, including:
- Valve spindles
- Fuel injectors
- Filters
- Cylinder heads
- Pistons
- Heat exchangers
- Intercoolers
As each problem is unique, a variety of machine specifications are required for industrial cleaning processes. Explore our range of Hilsonic ultrasonic cleaning tanks below.

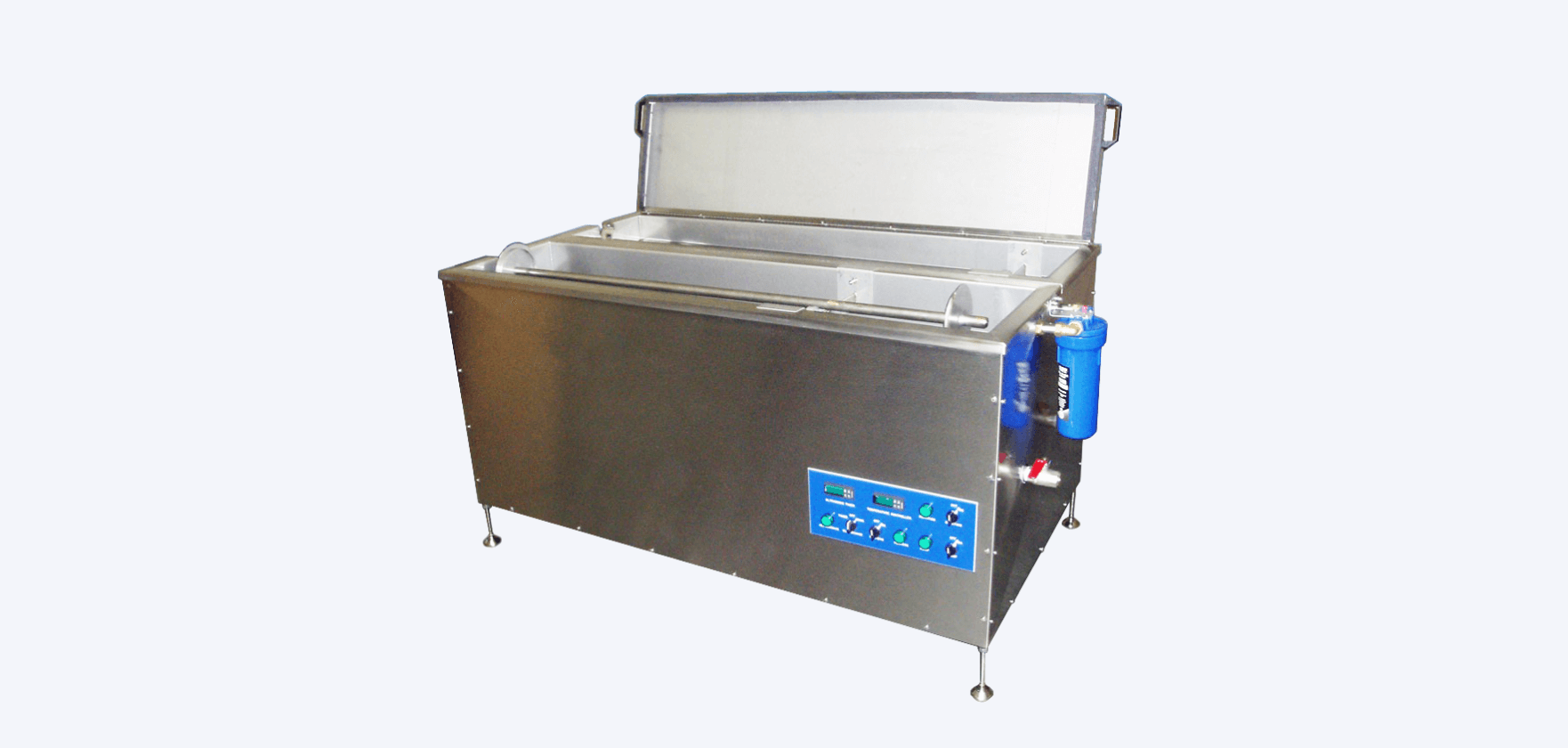

Standard ultrasonic cleaning tanks
Engineered for exceptional performance and durability, the standard tanks are constructed entirely of heavy gauge 316L stainless steel.
All standard models incorporate Hilsonic’s robust, reliable generators and industrial rod converters, as well as the company’s unique frequency sweep process.
With a watt-per-litre range up to 50W, the standard Hilsonic range is designed for years of trouble-free operation in the harshest industrial environments.
Accessories including lids and baskets are also available for all models.
| Model | KHz | Tank dimensions | Litres working capacity (approx) | Product code |
|---|---|---|---|---|
| HS1900 | 30 | 300 x 300 x 200 deep | 19 | 00930013 |
| HS2900 | 30 | 500 x 300 x 200 deep | 29 | 00930014 |
| HS3800 | 30 | 500 x 300 x 300 deep | 38 | 00930015 |
| HS4000 | 30 | 700 x 300 x 200 deep | 40 | 00930016 |
| HS4800 | 30 | 500 x 300 x 400 deep | 48 | 00930017 |
| HS5000 | 30 | 700 x 300 x 300 deep | 50 | 00930018 |
| HS5800 | 30 | 600 x 500 x 250 deep | 58 | 00930019 |
| HS6000 | 30 | 700 x 300 x 400 deep | 60 | 00930020 |
| HS7800 | 30 | 600 x 500 x 300 deep | 78 | 00930021 |
| HS98/1KW | 30 | 600 x 500 x 400 deep | 98 | 00930022 |
| HS98/2KW | 30 | 600 x 500 x 400 deep | 98 | 00930023 |
| HS120/1KW | 30 | 700 x 600 x 300 deep | 120 | 00930024 |
| HS120/2KW | 30 | 700 x 600 x 300 deep | 120 | 00930025 |
Budget ultrasonic cleaning tanks

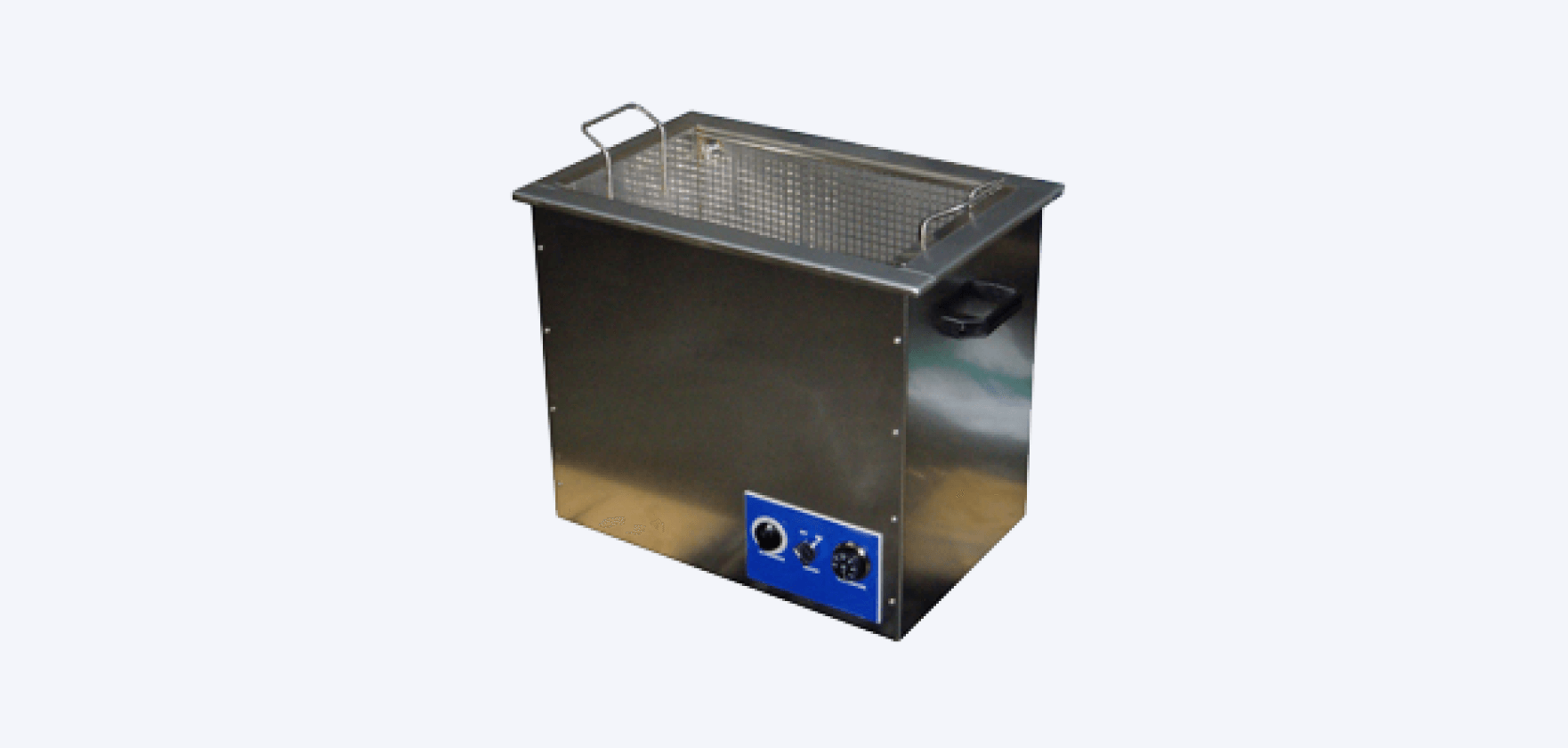

Ultrasonic cleaning tanks from Hilsonic’s budget range combine a lighter construction with higher power levels than their more expensive industrial counterparts. They come complete with integral controls and are constructed from powder-coated steel panels.
| Model | KHz | Tank dimensions | Litres working capacity (approx) | Product code |
|---|---|---|---|---|
| HS1000 | 30 | 300 x 240 x 150 deep | 9 | 00930026 |
| HS1400 | 30 | 300 x 240 x 200 deep | 12 | 00930027 |
| HS1500 | 30 | 327 x 300 x 150 deep | 14 | 00930028 |
| HS1800 | 30 | 327 x 300 x 200 deep | 18 | 00930029 |
| HS2200 | 30 | 500 x 300 x 150 deep | 22 | 00930030 |
| HS2800 | 30 | 500 x 300 x 200 deep | 26 | 00930031 |
We also supply Star Ultrasonic Multi-Cleaner, which is specially developed for use with ultrasonic cleaning tanks.
What is ultrasonic cleaning?
Ultrasonic cleaning is a process that utilises sound waves to safely and conveniently clean different surfaces. It’s a powerful way to clean delicate or hard-to-reach parts in industries such as the power generation and marine sectors.
An ultrasonic cleaning system consists of two components: a generator and transducers. Hilsonic’s generators run on a patented frequency sweep, which creates intense, uniform cavitation and transfers energy efficiently. The transducers, composed of high-quality phosphor-bronze/silver materials, minimise heat build-up and thus extend transducer life expectancy.
You can use ultrasonic energy to clean most anything that can be safely wetted. Among other applications, ultrasonic cleaner solutions are designed for iron and steel castings, fabricated parts, plastics, precious metals, ceramics, glass, rubber, and polished surfaces like aluminum.
